“OTTO“ SYSTEM

floating docks and systems



modular floating systems OTTO

  OTTO MODULAR FLOATING SYSTEM


The floating modules

OTTO

, a patent resulting from the military, are being ISO / RINA and tested UNIVERSITY OF PADUA.

They are built on demand in different colors, currently the most requested is the turquoise most of all it integrates with the color of the water and in three basic forms:

  • The first is a block from 50cmx50cm height 25 cm and serves essentially by step;
  • The second is always 50 cm x 50 cm height 40 cm;
  • The third module is 100 cm x 50 cm height 40 cm.

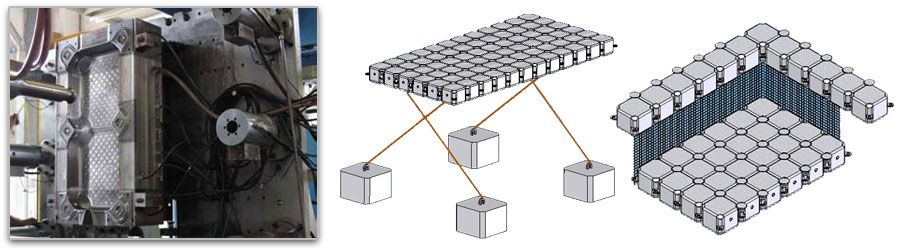

Each block is made with a single printed with compressed air inside that allows the material to high molecular density to expand uniformly in the mold and thus have the same thickness everywhere.

The material used is called the S TOTAL 56020 POLYETHYLENE HDPE

Density = 0.952 g/cm3 ISO 1183

CERTIFIED ITALIAN Ministerial Decree of 21/03/1973 updated in 04.26.1993, DM N ° 220 and up to date with the Ministerial Decree 28/03/2003 # 123.

This raw material, used for the construction of our elements, in brief, is extremely resistant to all influences marine, salt water and acids, and is also used for food use. It is extremely resistant to UV rays, resists temperatures from - 60 ° to + 80 degrees Celsius and also easily recyclable.

This product is guaranteed for a minimum of 3 years.

The assembly between the various blocks is carried out with a pin which, rotated with a wrench 45 degrees, joins the rings marked from 1 to 4 blocking them with each other and the elements making a single body, while allowing the whole to float on the waves.

Obviously the non-slip walking surface, rounded edges, the ergonometric shape, all the accessories, have evolved over the years, allowing many people around the world to benefit from these systems without problems.

The buoyancy is conservatively defined in 380 Kg per square meter.

You can build:

  • Docks
  • Floating walkways
  • Floating pools
  • Protective barriers
  • Rafts
  • Photovoltaic floating
  • Etc.etc.

All facilities are fully integrated into the environment, without any impact.

They can be removed without a trace and reusable.


Floating cubes
Floating cubes

PATENTED

PATENTED


Floating Cubes “Otto” System, always forefront.


Compatible with any previous realization, for:

  • Lighting
  • Signalization
  • Night’s usability of the system
  • Minimal maintenance
  • Zero consumption

Our technical department is available for any further clarifications.

INDEPENDENT LIGTHING SISTEM
INDEPENDENT LIGTHING SISTEM


INDEPENDENT LIGTHING SISTEM
INDEPENDENT LIGTHING SISTEM

INDEPENDENT LIGTHING SISTEM.


  • APPLICABLE IN ANY POSITION
  • RESISTANT TO SALTINESS AND HIGH TEMPERATURES
  • HOW ALWAYS QUALITY EXPERIENCE WARRANTY

Our technical department is available for any further clarifications.

floating house prefabricated
NEWS: Floating House Prefabricated

floating house prefabricated on floating pontoon with free sizes.
we deliver pontoons and floating platforms around the world
Our cubes are ready to delivery in all the world.

modular floating systems made in Italy

  OTTO MODULAR FLOATING SYSTEM


SINGLE ELEMENT:
L x L x A = 50 x 50 x 40 cm, Weight 6,0 kg

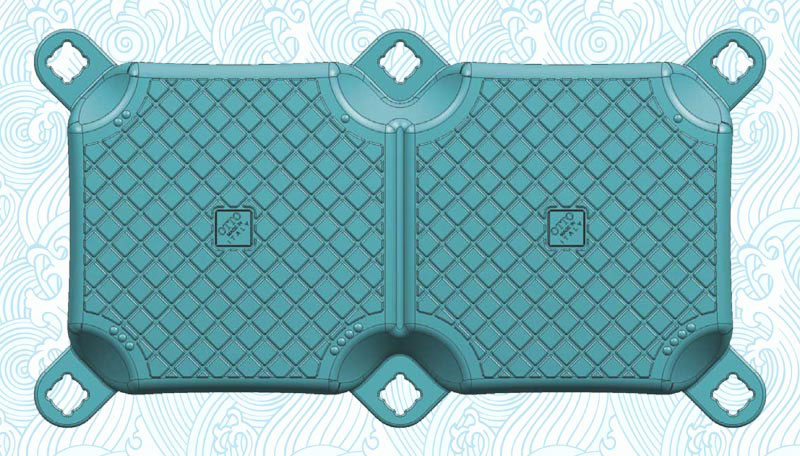

DOUBLE ELEMENT:
L x L x A = 100 x 50 x 40 cm, Weight 11,0 kg

STANDARD COLORS:
turquoise, black, light blue, light gray

SINGLE ELEMENT, LOW VERSION:
L x L x A = 50 x 50 x 25 cm Weight 5,0 kg

COLOR: black

BUOYANCY:
350 kg\m2 single layered
700 kg\m2 double layered
1050 kg\m2 triple layered
TEMPERATURE RESISTANCE:
- 60oC / + 80oC

CRAW MATERIAL:
Total HDPE56020S density Molec 0,954 g\cm2


TARGET GROUPS:
  • jetties, marinas, yacht harbours, jetski
  • recreational platforms, diving platform, rowing clubs
  • navy, coast guard, river/harbour police, mobile jetties
  • working platforms, temporary pontoon bridges
  • floating photovoltaic systems
  • floating PV solutions
ECONOMICAL:
  • no repair and maintenance costs
  • simple self-assembly, no cranes needed for assembly
  • extension/alteration in steps of 50 cm
  • dismantlable, stackable, high resale value
  • high elastic resistance to boat impact and wind
  • no sharp edges, corners and connecting parts

RELIABILITY:
  • offshore installations
  • no material fatigue or weathering
  • in accordance with foodstuff regulations
  • outstanding uv-resistant plastic, recyclable
